Fllat Transformer
MODULE SPECIFICATIONS:
Transformers:
Area Magnetic Length Volume
0.68 cm² (0.105 in³)2.8 cm (1.10") 2.0 cm³ (0.122 in³)
Built-in Secondary Windings is Center Tap single Turn.
Inductor:
Number of turnsWired size
4 AWG #15



MODULE CONSTRUCTION:
  1. The flat transformer consists of 2 epoxy coated square cores. Each core has 2 built-in helix windings bonded to the inside surfaces
  2. The 2 square cores are connected together to form the center tapped flat transformer with a single turn push pull secondary winding

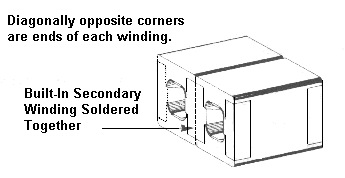

Module ConstructionSoldered together

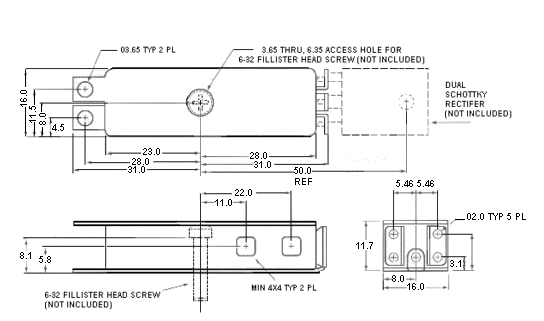

MODULE DIMENSION ( mm ) Module Dimensions



ORDERING INFORMATION
Part Number: FTI-12x2A-1B ( for one module ).
Multiple modules on common 18mm (0.7") thick base copper plate are available. Please call for more details
Technology licensing is available.

PATENTS: This technology is covered under U.S. Patents No 4,665,357; 4,845,606; 4,942,353 and/or 5,093,646. Other patents are pending.
DISCLAIMER: The recommendations herein are based on FMTT, Inc.'s experience, research and testing. The and believed to be accurate, but NO WARRANTIES ARE MADE, EXPRESS OR IMPLIED.
