IRON POWDER SHIELDED COIL FORMS

Adjustable/Slug Tuned

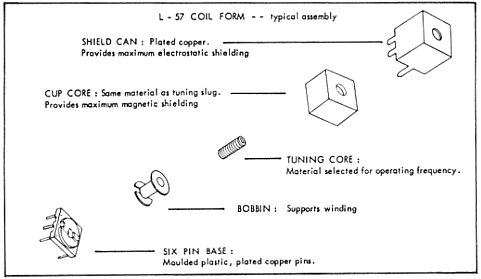

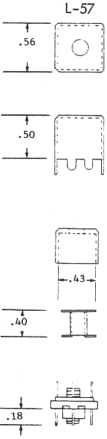

L-57 Coil Forms

Part
number

Frequency
range (MHz)

AL (µh/100 t)
at max Q

Color
Code

Tuning
Range

L-57-1

0.30 - 1.0

175

Blue

3/1

L-57-2

1.00 - 10.0

125

Red

2/1

L-57-3

0.01 - 0.5

204

Gray

3/1

L-57-6

10.00 - 50.0

115

Yellow

2/1

L-57-10

25.00 - 100.0

100

Black

2/1

L-57-17

50.00 - 150.0

67

Violet

1.5/1


  • Available in materials 1, 2, 3, 6, 10 and 12
  • Can be tuned from both top and bottom
  • Furnished with six-pin base to accommodate center tapped coils.


Solid magnet wire may be substituted for the Litz wire, but somewhat lower Q may result.

Most efficient when tuning slug is set at maximum L. For Tuning flexibility calculate so that slug will be about 90% maximum L when at operating frequency.
