IRON POWDER MATERIALS
Saturation and Flux density

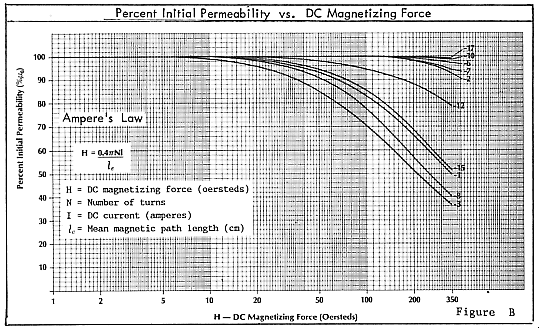

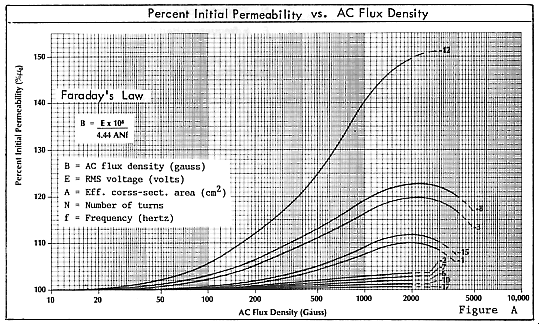

The factors affecting the power capability will vary with operating conditions. Core losses are lower at the lower frequencies and lower power levels. Losses will increase rapidly as either the frequency or power level is increased. Core losses can create overheating, which in turn will affect the saturation point. Maximum flux density can be calculated with the Faraday Law and Amperes Law, both of which are shown below.
