67 Material

A high frequency NiZn ferrite for the design of broadband transformers, antennas and HF, high Q Inductor applications up to 50 MHz.  Toroids, multi-aperture cores and antenna/RFID rode are available In this material.

Strong magnetic fields or excessive mechanical stresses may result in irreversible changes in permeability and losses.




67 Material Characteristics


Property: Unit Symbol Value

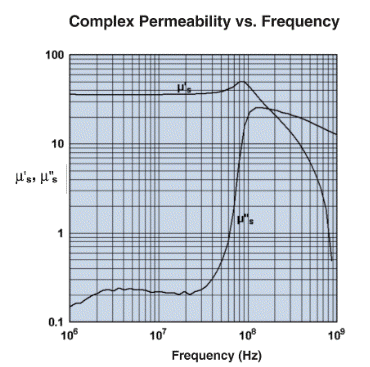

Initial Permeability
@ B <10 gauss
  µi 40

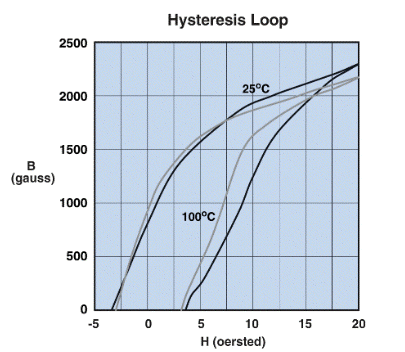

Flux Density
@ Field Strength
Gauss
oersted
B
H
2300
20
Residual Flux Density Gauss Br 800
Coercive Force Oersted Hc 3.50
Loss Factor
@Frequency
10-5
MHz
tan δµi 150
50
Temperature Coefficient of
Initial Permeability (20-70oC)
%/oC   0.05
Curie Temperature oC Tc >475
Resistivity Ω cm ρ 1 x 107
