52 Material

A new high frequency NiZn ferrite material, that combines a high saturation flux density and a high Curie temperature. SM beads, PC beads and a range of rod cores are available in this material.




52 Material Characteristics


Property Unit Symbol Value

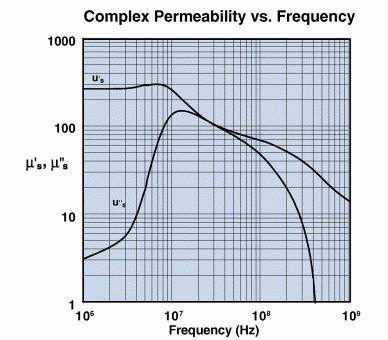

Initial Permeability
@ B <10 gauss
  µi 250

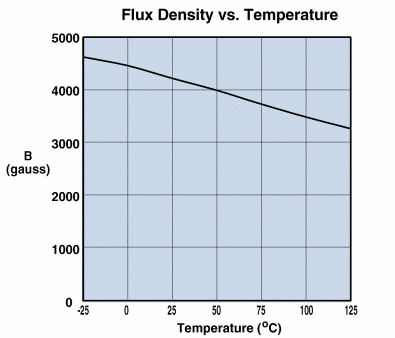

Flux Density
@ Field Strength
Gauss
oersted
B
H
4200
10

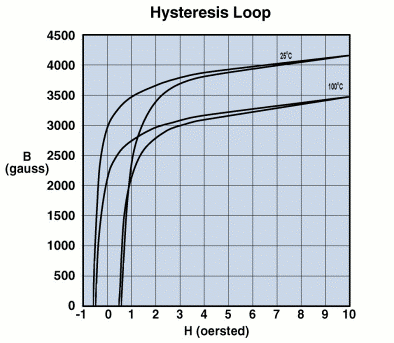

Residual Flux Density Gauss Br 2900
Coercive Force Oersted Hc 0.60
Loss Factor
@Frequency
10-5
MHz
tan δµi 45
1.0

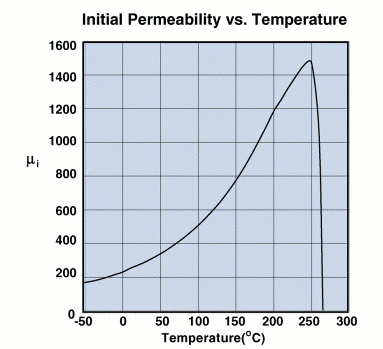

Temperature Coefficient of
Initial Permeability (20-70oC)
%/oC   1.0
Curie Temperature oC Tc >270
Resistivity Ω cm ρ 1 x 109
